How to Build a DIY Solar Pool Heater With Black Hose (500 ft Coil)

Apr 5, 2017 | Outdoors

If you want to build a DIY solar pool heater with black hose, this is the version where I used a 500 ft coil mounted to plywood and tested how well it actually heated the water.

This page is specifically about the black-hose panel build. If you want the broader cheap-heater planning version, read Cheap DIY Solar Pool Heater: What Worked and What Didn’t.

If you are searching for a black hose pool heater, this is that exact setup.

500-foot black hose solar heater coil mounted on a plywood panel

Quick Answer

Yes, a 500 ft black irrigation hose coil can heat pool water on sunny days. Mine took about four minutes for water to pass through, and outlet water felt much warmer than pool temp. It is cheap to build, but flow control and pump setup matter a lot.

Materials Used

One 4x8 sheet of outdoor plywood
500 ft black irrigation hose
Zip ties and a drill for tie holes
Optional small external pump (we eventually used a cheap variable-speed unit)

How I Built the Black Hose Panel

1) Lay out the hose before drilling everything

Managing 500 ft of hose is not fun. It wants to twist, kink, and fight you. We started at the outside edge of the plywood and spiraled inward, keeping turns as gentle as possible.

2) Drill and zip-tie as you go

We drilled pairs of holes and tied the hose down in sections. There was no perfect template. We adjusted tie spacing based on where the hose wanted to move.

3) Route intake and return

We drilled a center hole, ran one line in, coiled around, and sent the outlet back to the pool. You can watch the whole build below.

Performance and Expectations

On sunny days, the outlet water came out clearly warmer. We also learned quickly that driving this through a normal pool return jet was not ideal long-term. The panel worked better once we ran it from a dedicated cheap pump.

This was not a miracle heater, but on sunny days it absolutely added heat and extended swim time enough to be worth the build.

What Went Wrong and What I’d Change

It took longer than expected. This was about 8 hours over two mornings.
Flow restrictions matter. Kinking the outlet works in a pinch but is rough on equipment.
Pool plumbing integration needs thought. If you are unsure, keep this setup isolated and use a separate pump.

If your yard plumbing is already aging, fix that first. This Toro PVB leak repair is a good example of the kind of maintenance worth handling before adding more DIY water projects.

Full Build Photos

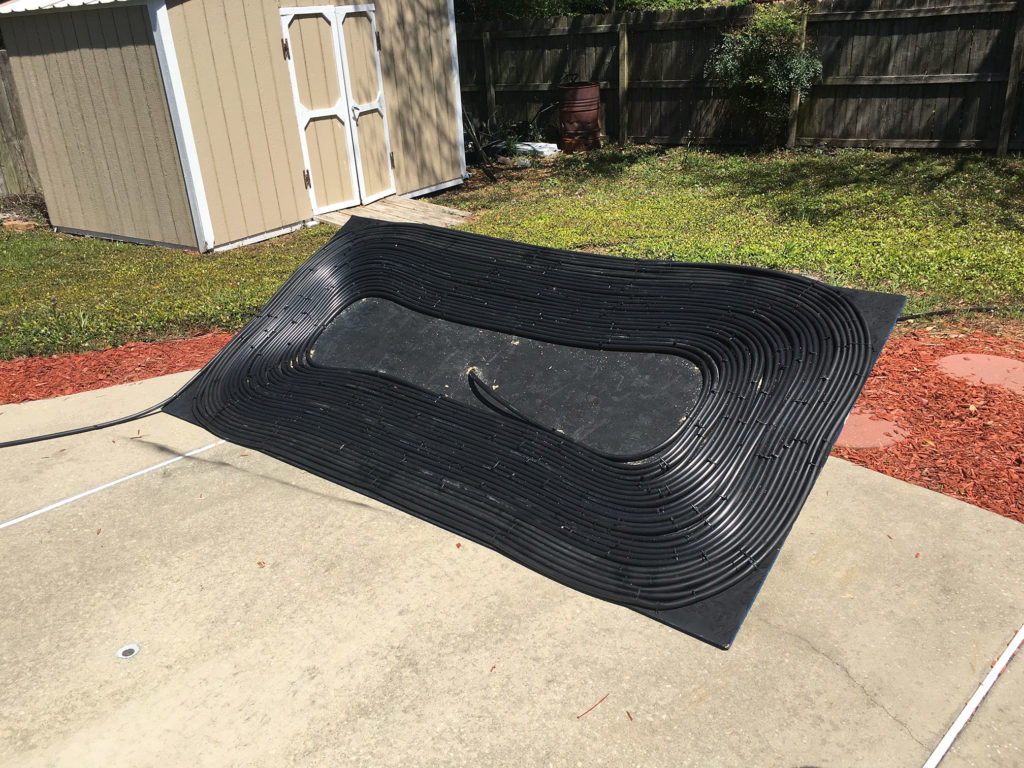

Completed black hose pool heater panel with tight 500-foot coil pattern

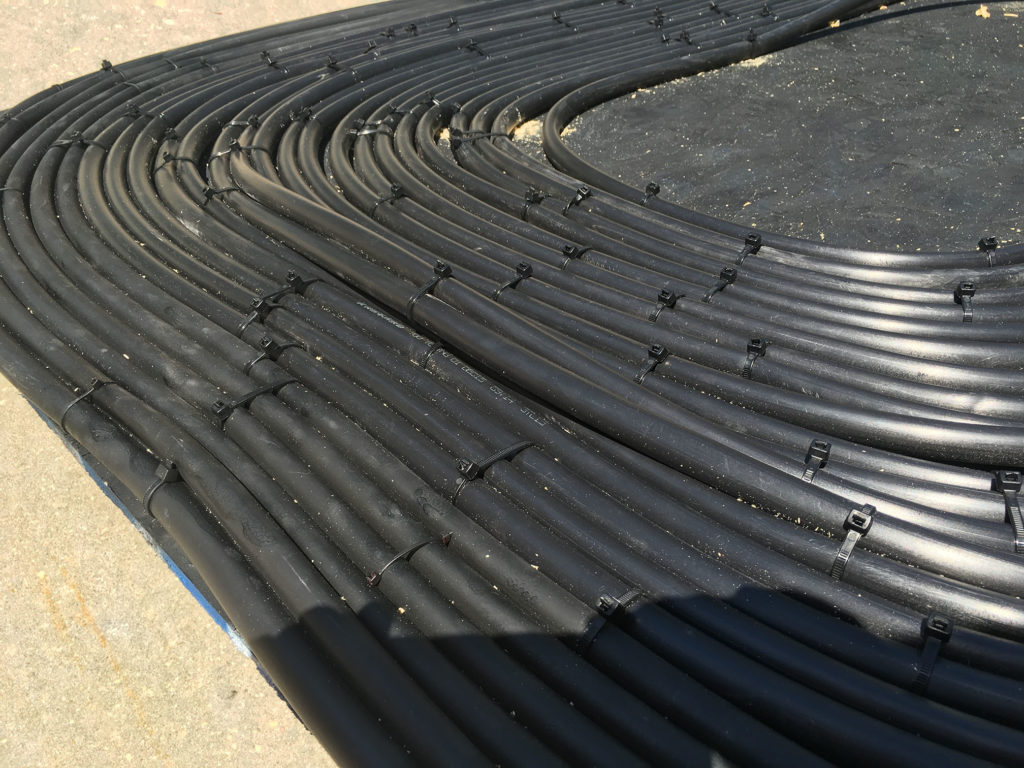

Close-up of black hose routing and zip ties securing the coil to plywood

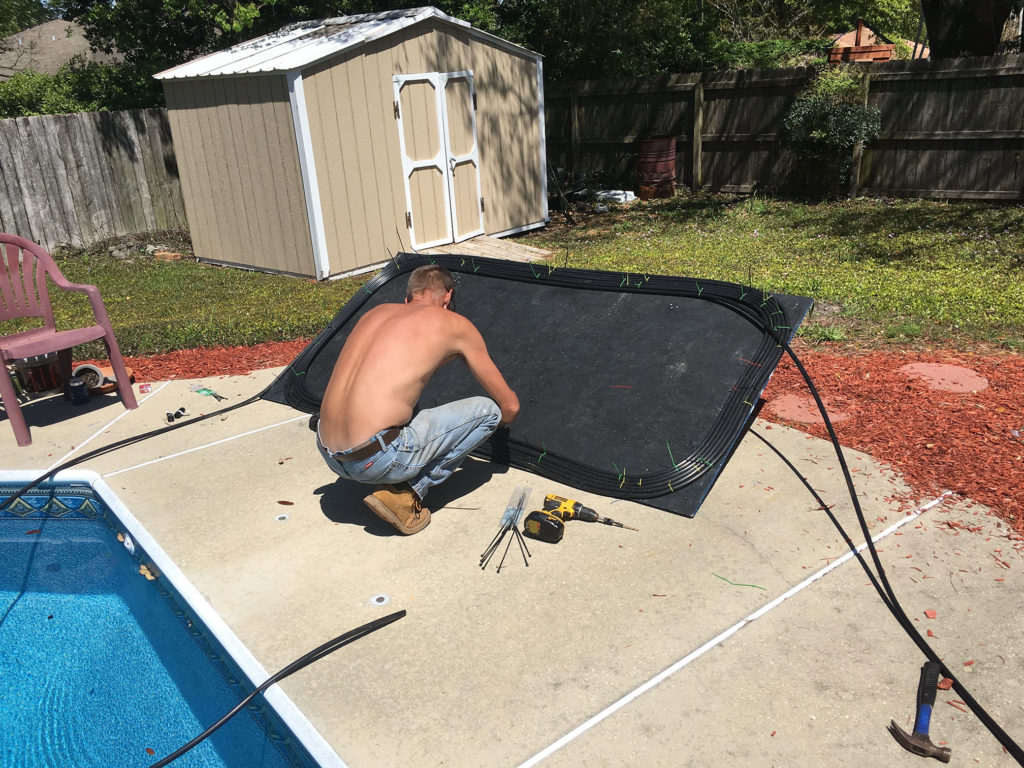

Early stage coil layout for the DIY solar heater before final tie-down

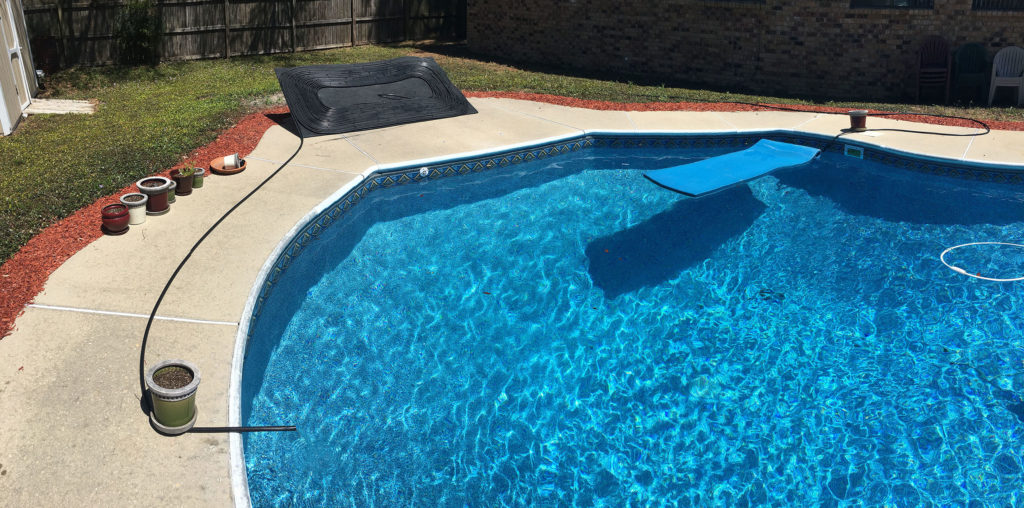

Finished plywood-mounted black hose pool heater panel set up in the yard

FAQ

Does black hose really heat pool water?

Yes. In direct sun, the hose gets hot and transfers that heat into the water moving through it.

How much black hose do I need for a DIY solar pool heater?

I used 500 feet for this build. That was enough to make the outlet water noticeably warmer, but the tradeoff is more resistance and slower flow.

Can I run this from my pool return jet?

You can test it that way, but I would not call it ideal. A dedicated small pump is safer for your main pool system.

How is this different from my other solar pool heater article?

This page is the detailed 500 ft black-hose panel build. The other one is the broader low-budget strategy with planning notes: Solar Pool Heater DIY and Cheap.
